How to remove a 2009-2012 MAZDA 5 car radio with Android 5.1.1 GPS navigation system DVD player Radio Mirror link multi-touch screen OBD DVR TV 3G WIFI USB SD Bluetooth IPOD

2009-2012 MAZDA 5 car radio after installation

Here shows you an intelligent 2009-2012 MAZDA 5 car radio from Seicane after installation. If you want to enjoy more modern features in your car, it’s a great choice for you to consider the replacement of your factory radio. If yon don’t know how to install a new unit in your car, you can ask a professional for help. Now I’d like to share a detailed 2009-2012 MAZDA 5 car radio installation guide from Seicane with you. Wish you can get some help from it.

2009-2012 MAZDA 5 car radio after installation
2009-2012 MAZDA 5 car radio after installation

Tips about the installation:

1.Please disconnect the power before the installation.

2.Please prepare a lever and a screwdriver before the removal and the installation.

3.Please keep all the separate parts from the car. Please take great care of the dashboard to avoid scratching it during its detachment and installation. Please keep handy any parts from the car and make use of all the original screws from the car as much as possible. so each related part of the unit can be fixed securely.

4.For your convenience, here’s the recommended tools for removal and installation from Seicane, please check for more details: http://www.seicane.com/car-dvd-dismantling-device-srd-400

2009-2012 MAZDA 5 PREMACY car radio installation guide

1.Unclip and remove the cup holder panel in the center console.

2. Unclip and remove the small pocket panel on the back of the center console behind shifter.

3. Remove 2 8mm bolts under cup holder panel holding the back half of the center console to the front half.

4. Unscrew and remove the shift knob.

5. Unclip and remove the shifter trim panel.

6. Unclip and remove the shifter trim panel.

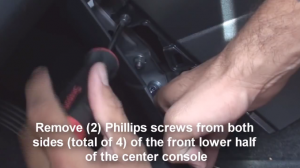

7. Unclip and pull back the panels at the lower front sides of the center console.

8. Unclip and pull back the panels at the lower front sides of the center console.

9. Unclip and remove the vent panel including the hazard switch above the factory radio.

10. Its easier to remove 2 screws by setting this piece on the top of the dash.

11. Remove 2 screws from behind the shifter trim.

12. Pull center console toward, this will help gain access to 2 screws under the climate controls.

13. Remove 2 screws.

14. Unclip harness and pull rear center console backwards.

15. Press in shifter release trigger and pull shifter down, make sure to have e brake on.

16. Press in side prongs to release climate controls.

17. Remove one screw and one 10mm bolt.

18. Pull factory stereo out to release clips, then unplug original radio’s connectors.

19. Connect the harnesses to the back of the new Seicane car radio.

20. Connect the Seicane car radio to your original car radio ‘s plugs.

21. Turn on the new Seicane radio to have a careful check if everything works well. If it doesn’t, please check whether all the cables are connected correctly.

22. Put the new Seicane radio into the dash.

23. Put everything into their original place. All the installation is done.

Is it easy for you to understand all the installation steps for a 2009-2012 MAZDA 5 car radio? If not, it’s suggested you consult your dealer. Or you can also directly have a professional install it. If you haven’t found an ideal head unit for your car, you can refer to this amazing 2009-2012 MAZDA 5 car radio from Seicane. It comes with the latest features and capabilities for you to upgrade your factory radio. For more details, you can click:

http://www.seicane.com/2009-2012-mazda-5-android-gps-navigation-system-with-dvd-player-radio-mirror-link-multi-touch-screen-obd-dvr-rear-view-camera-tv-3g-wifi-usb-sd-bluetooth-ipod-s168005

This intelligent 2009-2012 MAZDA 5 car radio comes with a large 8 inch multi-touch screen, which is ideal for you to enjoy the simple operation and clear display in your beloved car. Just enjoy all your trips with this wonderful GPS navigation system DVD multimedia player which enables you to play DVD disks in diverse types, movies, music, iPod, FM/AM radio, TV, etc. Good luck to you!
