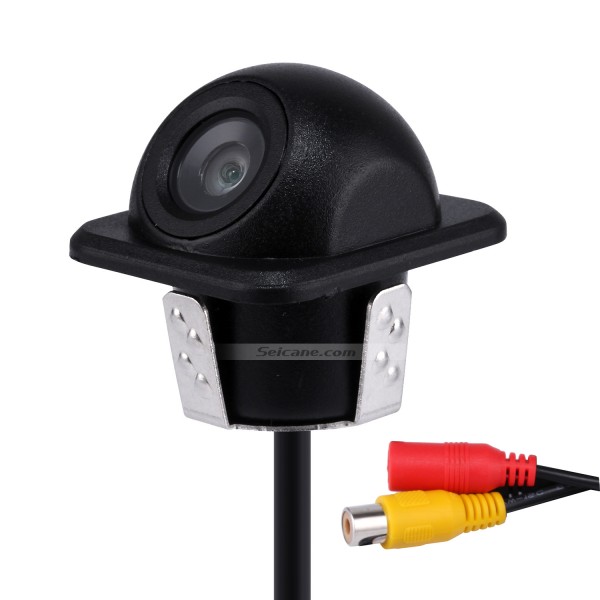

Sistema de ayuda del estacionamiento del coche 170 grados de alta definición CCD de gran angular HD de copia de seguridad de reversión de la cámara con la visión nocturna impermeable




















-
Parametroj de Produkto:
- Lens Angle: 170 ° (diagonal)
- Image Sensors: Hi-definition Color CCD
- TV System: NTSC
- Resolution: 480TV Lines
- Minimum illumination: 0.1Lux
- Scanning System: 2:1 staggered
- Synchronization System: Internal
- Automatic Gain Control: Auto
- Automatic Brightness Control: Auto
- Waterproof Rate: IP68
- Shockproof Rate: 6.8
- Power Supply Voltage: DC 12V±10%
- Power Consumption: 150 mA
- Operation Temperature: -30°C- +85°C
- Storage Temperature: -40°C- +100°C
- Vertical Sync Frequency: PAL 50Hz / NTSC 60Hz
- 1.The digital fill-in light image sensor is specially designed for automotive rear view, which adopts digital fill-in light and software technology. Therefore, at daytime the image is clear and the minimum illumination is strong at night.
- 2.With high quality components and a large 170°viewing angle, the viewing area will be larger and the parking will be safer.
- 3.Equipped with aluminum alloy and industrial plastic structure, is secure, waterproof and shockproof.
- 4.It goes through high pressure immersion test and over 12 hours’ wire aging test.
- 5.With reversing reference line, can help you know the obstacle distance at a glance.
- 6.Application temperature range from -30 ℃ to +60 ℃ makes it full in line with automotive environmental application.
- Step1. Mount the camera to your car's side view mirror, back window, or any other suitable place.
- Step2. Adjust the lens of the camera to its best position.
- Step3. Connect power wire (red and black) to your vehicle DC 12V power system.
- Step4. Connect the video output (yellow wire) of the camera to the display in your vehicle.
Product Features:
How to Install:
