Détails

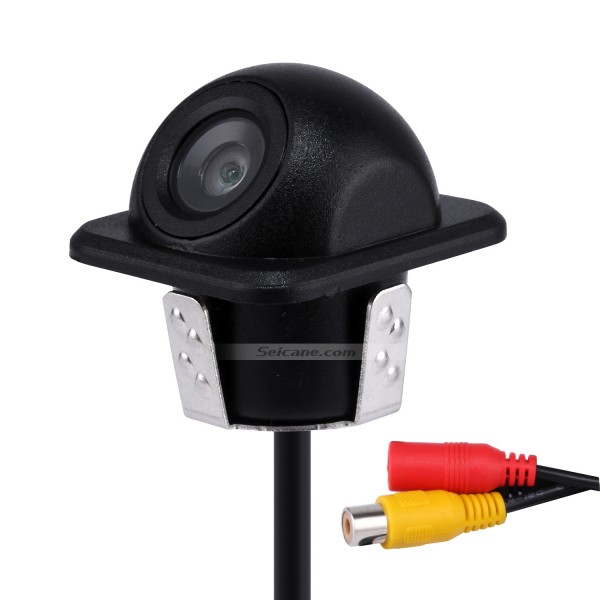

Système d'assistance au stationnement de voiture 170 degrés Haute définition CCD grand angle HD Caméra inversée de sauvegarde avec vision nocturne étanche
-
Paramètres du produit:
- Lens Angle: 170 ° (diagonal)
- Image Sensors: Hi-definition Color CCD
- TV System: NTSC
- Resolution: 480TV Lines
- Minimum illumination: 0.1Lux
- Scanning System: 2:1 staggered
- Synchronization System: Internal
- Automatic Gain Control: Auto
- Automatic Brightness Control: Auto
- Waterproof Rate: IP68
- Shockproof Rate: 6.8
- Power Supply Voltage: DC 12V±10%
- Power Consumption: 150 mA
- Operation Temperature: -30°C- +85°C
- Storage Temperature: -40°C- +100°C
- Vertical Sync Frequency: PAL 50Hz / NTSC 60Hz
- 1.The digital fill-in light image sensor is specially designed for automotive rear view, which adopts digital fill-in light and software technology. Therefore, at daytime the image is clear and the minimum illumination is strong at night.
- 2.With high quality components and a large 170°viewing angle, the viewing area will be larger and the parking will be safer.
- 3.Equipped with aluminum alloy and industrial plastic structure, is secure, waterproof and shockproof.
- 4.It goes through high pressure immersion test and over 12 hours’ wire aging test.
- 5.With reversing reference line, can help you know the obstacle distance at a glance.
- 6.Application temperature range from -30 ℃ to +60 ℃ makes it full in line with automotive environmental application.
- Step1. Mount the camera to your car's side view mirror, back window, or any other suitable place.
- Step2. Adjust the lens of the camera to its best position.
- Step3. Connect power wire (red and black) to your vehicle DC 12V power system.
- Step4. Connect the video output (yellow wire) of the camera to the display in your vehicle.
Product Features:
How to Install:
