Einzelheiten

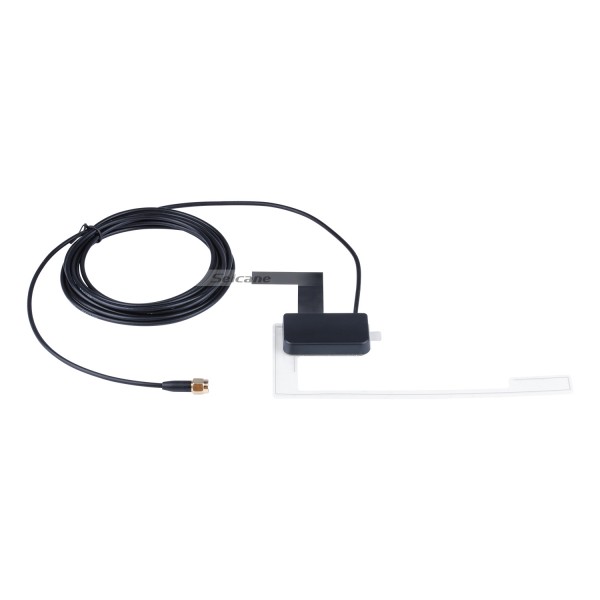

- Adopting a coefficient of high conductivity, low resistance of the FPC printed antenna as a reception antenna, this DAB digital radio antenna has a strong signal receiving function, good directivity. You can paste this antenna in the front of the car and the windscreen to the upper left and right sides to ensure the stability of the received signal.
Product Parameters
- Working Voltage: DC 10.5V-16V
- Working current: 30mA-60mA
- Rated voltage: DC 12V
- Rated Current: 40mA-50mA
- Output Impedance: 75Ω
- V.S.W.R: ≤3.0:1
- NS: ≤2dB
- Working Frequency: 170MHz-240MHz (Band III) 1452MHz-1492MHz (L-Band)
- Output Gain: 15dB±3dB (Band III) 12dB±3Db (L-Band)
- Working Temperature: -30degree Celsius~+80degree Celsius
- Storage Temperature: -40degree Celsius~+90degree Celsius
- Cable specification: 1.5DS, 3M
- Connector: SMB Female Right Angle
Please note:
- The DAB/DAB+ Receiver is not included.
