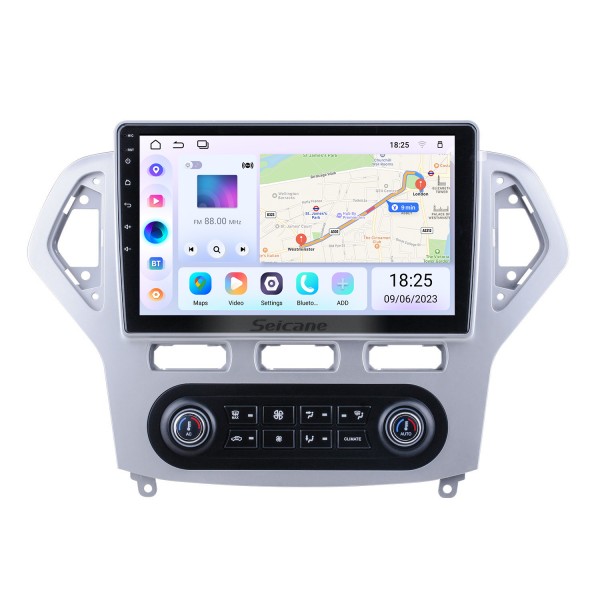

Сенсорный экран Android 13.0 HD 10,1 дюйма для 2007 2008 2009 2010 Ford Mondeo Auto A / C Radio Система GPS-навигации с поддержкой Bluetooth Carplay

A very good product and I can not begin to tell you how good the customer support is! They will help you with whatever in a timely fashion.

Please note this all worked as advertised. steering wheel buttons heating controls android auto etc....
I have a ford Mondeo titanium X 2008 fitted with the Travel pilot NX ( the one with the touch screen, GPS navigation and on screen heating controls),

IF INSTALLING PLEASE READ:

If you are installing you will need to modify the the back cage a little bit to fit, not much just with a saw cut out the top plastic T-shape.

Also the black box on the bottom of the travel pilot NX will need to be unscrewed and connected a gain. Some tie wraps is all I used to secure it. This is what controls you heating.

The caps to the left and right need to have some modification on the supplied casing due to the fit being very tight but do all fit! Do this step while the unit is out so you can push them out from the back if they get stuck, get a good fit where the tabs go into the head unit.

To connect the steering wheel controls you will need to cut and solder key 1 in to the pink wire or go to this web site to see the wiring diagram of the quadlock to connect the wire that comes from that pin(connector B/ pin 6) to key1.
https://www.fordwiki.co.uk/index.php/Quadlock_Stereo_Connector_-_Sony_DAB_/_USB

To have the heating controls come up on the dash, you need go to "car settings" then "factory settings" then(one of the) "protocol settings" then "Hiworld" then "old ford Mondeo 2009" this worked for me!

For android auto you do not need the dongle unsure if its just for apple car play but mine works with out it and not with it!

Don't hesitate to contact there support if needed! I have an email thread of over 40 where they helped me.

Make sure to watch lots of you tube videos on how to remove the travel pilot NX you will need 4 of fords special keys.

The blue aerial is clip on the bottom depress and pull out.

The quad lock in pinch together at the bottom and hinge up.

Hope this helps and enjoy your new stereo.
