Details
-

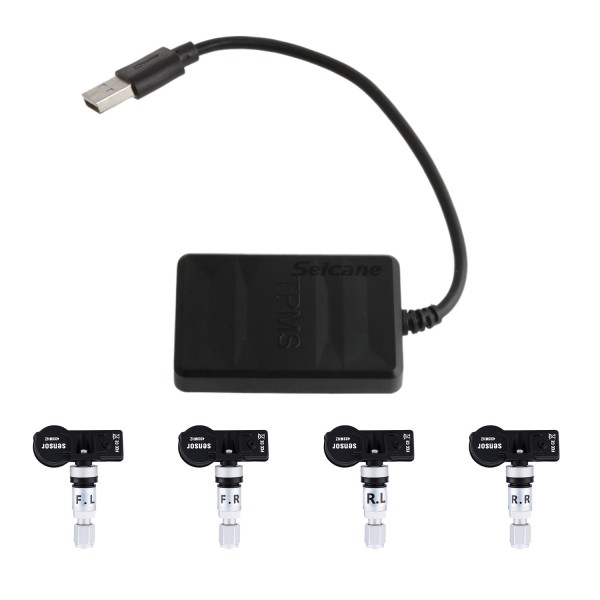

TPMS Modules Technical Parameters
- Working Voltage: 2.1V – 3.6V
- Pressure Range: 0 – 800 KPA
- Temperature Range: -40 ℃ – +125℃
- Internal Sensor Weight: ≤28g
- Internal Sensor Protection Level: IP5K6K
- Waterproof: IPX67
- Work Frequence: 433.92MHz
- Pressure Measuring Range: 0-8 BAR, 0-116 PSI
- Working Voltage: DC12V
- Working Current: < 15mA
- Internal Sensor Working Temperature: -40℃~+125℃
- Work Frequence: 433.92MHz
- Fix Mode: 3M Stick
- Connect Port: USB Port
- Step1. Install the TPMS app on your navigation.
- Step2. Connect the receiver to the USB port of the navigation.
- Step3. Install the sensors to the tires one by one.
- Step4. Fix the receiver.
- Step5. The app can alarm automatically when the tire has any abnormal situation, so you don't need to pay attention to the APP which shows in real time.
- Step6. You can adjust the pressure/temperature alarm limit valve through the menu of the TPMS APP.
- Step7. If you don’t need the alarm sound, you can close the sound.
-
Sensor:
