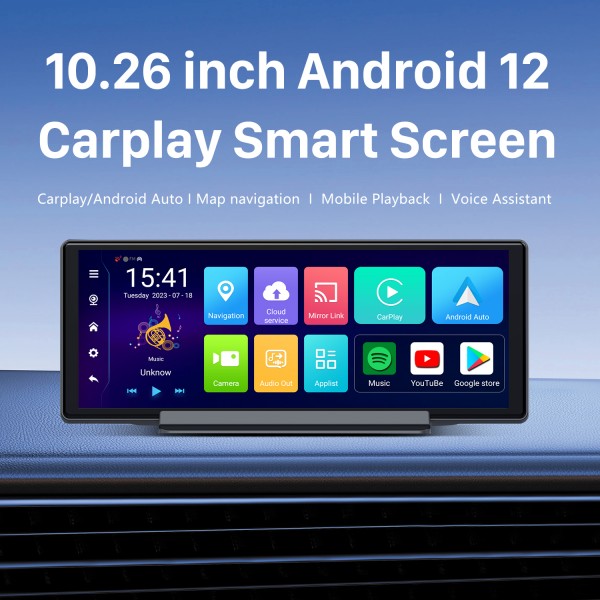

10.26 inch Android 12.0 Carplay Smart Screen GPS navigation system with Bluetooth TouchScreen support Rearview Camera

10.26 inch Android 12.0 Carplay Smart Screen GPS navigation system with Bluetooth TouchScreen support Rearview Camera

Name: 10.26 inch Android 12.0 Carplay Smart Screen GPS navigation system with Bluetooth TouchScreen support Rearview Camera
SKU: 80133712

#80133712

Android 12.0, 2G+32G,Plug and play,Built-in Wireless CarPlay Android Auto

Be the first to review this product

Model:H056N-O

Special Price:

US$
AUD GBP CAD EUR HKD RUB USD

104.00

Regular Price: US$ 417.00

Save
US$313.00

75%Off

*System

RAM 2G,ROM 32G,Without rear view
RAM 2G,ROM 32G,With rear view +US$7.00

* Required Fields

Qty:

(0)

Processing Time: 1 - 5 business days

Express shipping Time: 3 - 7 business days

Details| Reviews| Q & A

Quick Overview

Specifications
10.26 inch Android Carplay Android auto Smart Screen GPS navigation system

10.26 inch Android 12.0 Carplay Smart Screen GPS navigation system with Bluetooth TouchScreen support Rearview Camera

After Viewing This Item People ultimately bought

52

Regular Price: US$18.00

Special Price: US$8.68
73

Regular Price: US$688.00

Special Price: US$185.00
61

Regular Price: US$831.00

Special Price: US$326.00
US$43.99

Details

Seicane 10.26 inch Android 12.0 Carplay Smart Screen GPS navigation system with Bluetooth TouchScreen support Rearview Camera

Key features

CPU: 8 core 4*A55 1.6GHz + 4*A55 1.2GHz
GPU: PowerVR Fentale GE8322 up to 550MHz
RAM: 2GB
ROM: 32GB
Resolution: 1600*600
Touch screen: capacitive screen
Camera: Rear road (compatible with reversing image) AHD high definition (1080P)
MIC: single microphone, built-in, -40db±2db
Speaker: Built-in, 8Ω/2W
System parameters
Operating temperature: -20℃ ~ +70℃
WIFI: Support 2.4G: WIFI 802.11b/g/n 2.4G;
5G:WIFI supports HT20/HT40/VHT20/VHT40/VHT80
BT: Support Bluetooth 5.1, support Bluetooth calls, Bluetooth music (A2dp)
FM: Support 88-108MHz
GPS: External pull-out GPS+Beidou dual-mode GPS antenna, can receive up to 24 stars, supports AGPS, hot start
Interface configuration
Power supply interface: supports "car charger
Headphone interface: 2.5-inch headphone interface, 1 analog pull-back camera (2.5MM 4-section headphone holder) interface, compatible with automatic reversing function
TF card holder: TFlash card holder support
LCD interface: 40PIN MIPI display, supports 0.5mm pitch 40PIN contact FFC socket
Touch screen interface: supports 0.5mm pitch 6PIN upper contact FFC socket (universal 6PIN FPC line capacitive touch screen)
GPS interface: external, 1 GPS feeder SMA interface, consider the built-in effect
MIC interface: 2PIN pad
SPK interface: supports 8 ohms 2W (2PIN pad)
Uart communication interface: supports TTL 1.8V
AUX interface: AUX3.5 headphone holder supports audio output
U disk interface: USB-A 4PIN interface supports audio, video, pictures and other multimedia playback
Buttons: Support power button/reset button/download button/two function keys
Software configuration
Operating system: Android 12
Reversing visibility: supports rear road preview and reversing visibility
AUX audio output: The local audio is output to third-party AUX IN devices (such as car machines, speakers)
U disk local playback: Play local music, videos, pictures and other multimedia files through U disk
App store: google store
Navigation:google maps
Music: spotfiy
Bluetooth: Bluetooth call, Bluetooth phone
FM: FM transmitting sound
CarPlay:Support
Android Auto:Support
Wireless screen mirroring: supports Apple Airplay and Android screen mirroring
System upgrade: supports local upgrade and OTA upgrade

Video Parameter
Analogous Output	2.0 Vrms
Frequency response	20Hz-20KHz (±3dB)
SNR	70DB
Channel Separation	60dB

Audio Parameter
Frequency Response	42HZ- 20KHZ
SNR	70DB
Degree of Separation	60DB

System
Operation system	Android 12.0
CPU	8-core 4A55 1.6GHz + 4A55 1.2GHz
RAM	2G
ROM	32GB
OSD languages	English Russian Turkish Portuguese Spanish Arabic Farsi Romanian French Hungarian German Galician Ukrainian Hebrew Greek Polish

Display
Screen Size	10.26"
Touch Screen	yes
Resolution	1600*600 Pixels
Panel light	7 colors, adjustable with RGB
Wallpaper	Changeable
Car logo changing	Yes
Main menu	Adjustable

GPS
Dual zone	Yes
Voice navigation	Yes
Main frequency	1.5GHz
GPS Port	COM2
GPS Buad Rate	9600
Support map	Tomtom, IGO, Route 66,Papago etc
GPS Audio	Work with front&rear speakers

Bluetooth
Bluetooth call	Yes
Bluetooth version	5.1
Bluetooth music	Support A2DP Bluetooth for music
Phonebook download	Yes
Phonebook search	Yes

Radio
RDS support	Yes
FM/AM frequency	FM: 76.0MHz-108.0MHZ(Worldwide) / AM: 522KHz-1620KHz(Worldwide)
Storage quantity	FM radio: 18channels AM radio: 12channels
Radio area	Asia,Europe,Russia,Japan,USA,China,Latin America
Search method	automatic/manual

DVD
Video output range	No
HD 1080P	No
Anti Shock Memory	No
Last Position Memory	No
Compatible disc	No

4G/WiFi
Wifi	No
3G/4G net	No
WLAN Standard	802.11 a/b/g/n/ac, 2.4G+5G
3G/4G Net	No

USB / Micro SD
USB/SD Capacity	2TB
Portable Hard Drive	No

Multimedia
Music Format	MP3/WMA/AAC/RM/LFAC etc.All formats are supported
Video Format	MP4,H.264,WMV,AVI,RM/RMVB,VOB and more
Picture Format	JPG/BMP/JEPG/GIF/PNG

Amplifier
Testing voltage	No
Maximum power output	No

Input/Output
Video out	2
Audio output	No
Subwoofer Output	yes
AUX Video in	1
Reverse Camera	Yes
AUX Audio in	AUX-L;AUX-R

Optional Function
Digital TV	No
Camera	No
OBDⅡ	No
DVR	No
TPMS	No
DVD	No

Parking and Shipping
PC/CTN	1
Carton size	311813cm
Export carton	1.45kg
Warranty	3 year

Write Your Own Review

Tell us what you think about 10.26 inch Android 12.0 Carplay Smart Screen GPS navigation system with Bluetooth TouchScreen support Rearview Camera.

Write A Review

Hide all answers

Tab 1 Body

Q: Adjustable bracket ? Hi, Please help me with answers to the following questions: 1. Does it come it an Adjustable bracket like in the photo attached to this question, or with a support (not adjustable) like the one in the video ? 2. Is there a possibility to buy and adjustable bracket for this model ? Or there is a 10.26" device which comes with an adjustable bracket ? 3. What is the net weight of the device ? Thank you in advance, Marius ByMarius Jan 17, 2024

A:
Dear,
thanks for your message and we are so sorry for keeping you waiting.
1. Yes, it comes with an Adjustable bracket . we will send it in the package.
2. Export carton is 1.45kg.
looking forward to your purchase.

By Seicane
Apr 19, 2024
Was this answer helpful?

(31) | (28)

Ask a new question

Tab 2 Body

Ask a new question

Tab 3 Body

A:
Dear,
thanks for your message and we are so sorry for keeping you waiting.
1. Yes, it comes with an Adjustable bracket . we will send it in the package.
2. Export carton is 1.45kg.
looking forward to your purchase.

By Seicane
Apr 19, 2024
Was this answer helpful?

(31) | (28)
