192 Degree Horizontal View Field HD Car Backup Reversing Camera with Waterproof and Night Vision Parking Assistance system

Be the first to review this product

SKU: 119590 Model:S11309

Special Price:

69.00

Regular Price: US$ 80.00

Save
US$11.00
  • 14%Off

Quick Overview

Specifications
192 Degree Horizontal View Field HD Car Backup Reversing Camera with Waterproof and Night Vision Parking Assistance system

After Viewing This Item People ultimately bought

  • Roof Mount DVD Player 9 inch with FM USB SD Games

    Regular Price: US$108.99

    Special Price: US$99.00

  • 7 inch Android 6.0.1 Touchscreen Radio for 2000-2011 Hyundai Kia Nissan GPS Navigation System Bluetooth Music Backup Camera

    Regular Price: US$288.00

    Special Price: US$229.00

  • Brand new 10.1" HD 1024 * 600 high definition headrest MP5 Player Free Tilt Multilingual IR Transmitter FM Transmitter Game Function SD USB (1 pair) 58

    Regular Price: US$399.00

    Special Price: US$169.00

  • car dvd dismantling device 45

    Regular Price: US$18.00

    Special Price: US$9.99

  • Ultra-thin HD 1024 * 600 high definition 10.1" touch screen headrest MP5 Player Free Tilt FM Transmitter IR Transmitter 32 Bit Games USB SD Audio/Video Input & Output (1 pair) 53

    Regular Price: US$499.00

    Special Price: US$235.00

  • Headrest DVD Player 9 inch 800*480 with FM Games and Zipper Cover(1 Pair)

    Regular Price: US$256.00

    Special Price: US$198.00

  • 2×10.1 inch Intelligent Android 5.1.1 Quad-code Free Tilt  headrest  MP5 DVD Player with digital HD 1024 * 600 TFT LED Touch Screen Bluetooth WIFI FM Transmitter IR Transmitter USB SD 57

    Regular Price: US$699.00

    Special Price: US$299.00

Details



Seicane Sony CCD Universal HD Car Rearview Camera Parking Monitor for Dash Stereo Radio Waterproof Seicane Sony CCD Universal HD Car Rearview Camera Parking Monitor for Dash Stereo Radio Waterproof Seicane Sony CCD Universal HD Car Rearview Camera Parking Monitor for Dash Stereo Radio Waterproof Seicane Sony CCD Universal HD Car Rearview Camera Parking Monitor for Dash Stereo Radio Waterproof Seicane Sony CCD Universal HD Car Rearview Camera Parking Monitor for Dash Stereo Radio Waterproof Seicane Sony CCD Universal HD Car Rearview Camera Parking Monitor for Dash Stereo Radio Waterproof Seicane Sony CCD Universal HD Car Rearview Camera Parking Monitor for Dash Stereo Radio Waterproof Seicane Sony CCD Universal HD Car Rearview Camera Parking Monitor for Dash Stereo Radio Waterproof

Product Description:

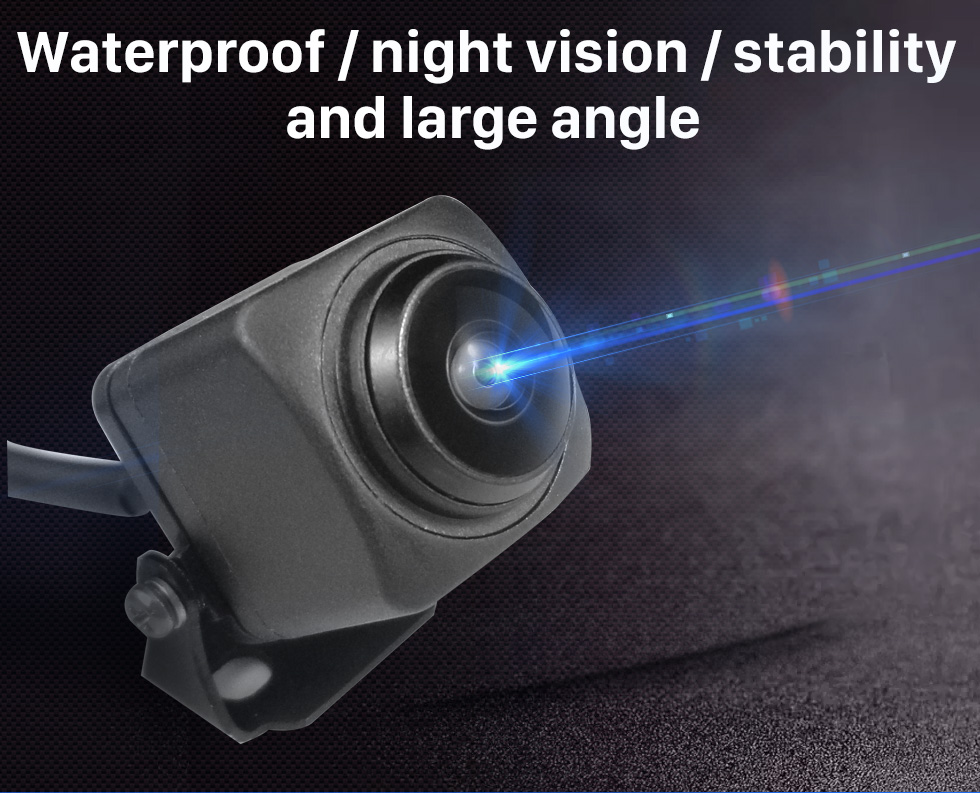

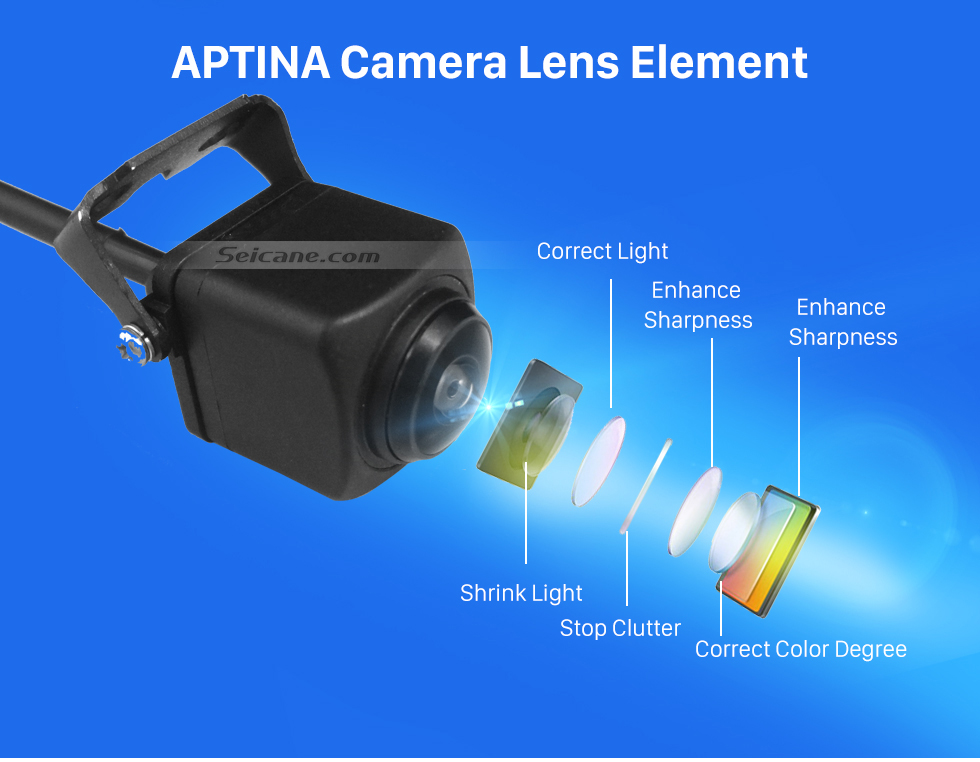

  • This powerful backup camera is loaded with the intelligent APTINA Chip to enhance its capacity. The great stability and super large view field angle makes it easier for you to deal with the parking.

Product Parameter
  • TV Mode: NTSC, Color
  • Image Sensor: 1/4” 4:3 IT CMOS
  • NTSC PIXELS: 728(H) X560 (V) (400,000 PIXELS)
  • USEFUL PIXELS: 720(H) X480V 350,000 PIXELS)
  • Interlace: 2:1 INTERLACE
  • Video Output: 1.0 Vpp/75Ω
  • Luminance Signal: 0.46 ± 0.1 (Vp-p)
  • Sync  Signal:0.286 ± 0.05(Vp-p)
  • Burst Signal: 0.286 ± 0.05(Vp-p)
  • White Clip Level: 0.82 ± 0.05Vpp
  • IRIS Method: Auto Electronic Exposure Control
  • Shutter Speed: 1/60~1/100,000 (Second)
  • Horizontal Resolution: More Than 330 TV Line
  • Vertical Resolution: More Than 300 TV Line
  • Gain Control: AGC (Auto Gain Control)
  • Signal to Noise Ratio: More Than 46Db at AGC off
  • Dynamic Range: 74Db
  • Minimum Illumination: 1.5 lux (30 IRE including set-up)
  • Horizontal Scan Synchronization Frequency: 15.734kHz±75ppm
  • Vertical Scan Synchronization Frequency: 59.94Hz±75ppm
  • Subcarrier Frequency: 3.579545MHz±75ppm
  • Gamma Value: 0.45
  • Mirror Function: Build-in
  • Operation Voltage Range: 9.0V~16V OR 5.7~6.5V
  • Response Time: In 1.5 S (from mistiness image to clear image)
  • Power Consumption: <100Ma
  • Operating Humidity: 90 RH%
  • Operating Temperature: -40℃ ~ +85℃
  • Storage Temperature: -40℃ ~+85℃

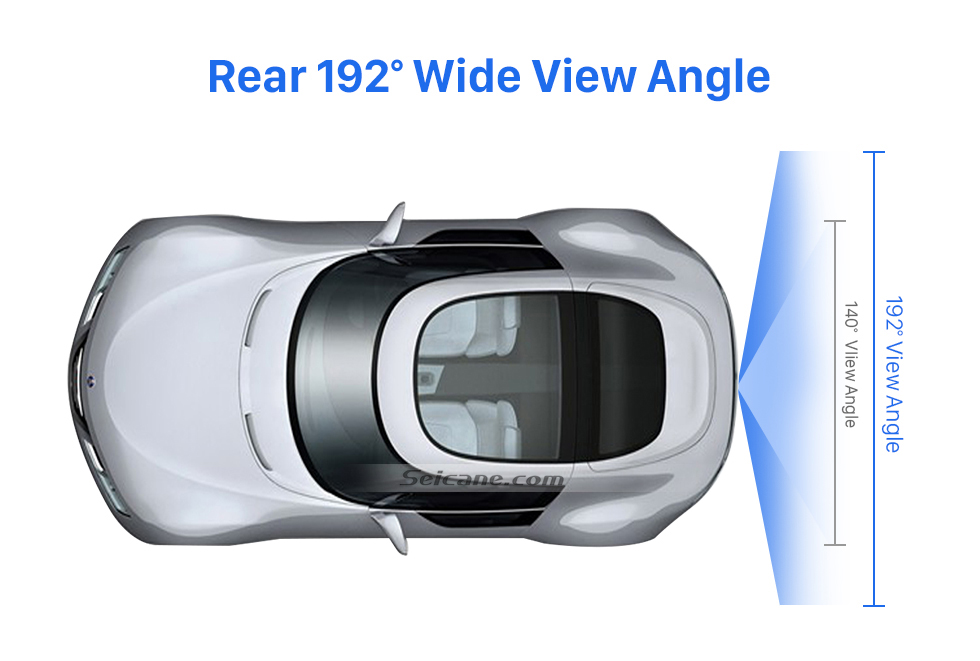

  • Horizontal Field of View: 192°±2°
  • Vertical Field of View: 142°±2°
  • Axis precision: ±1.5°

Parameter
Chip APTINA
Image Sensor CCD CMOS

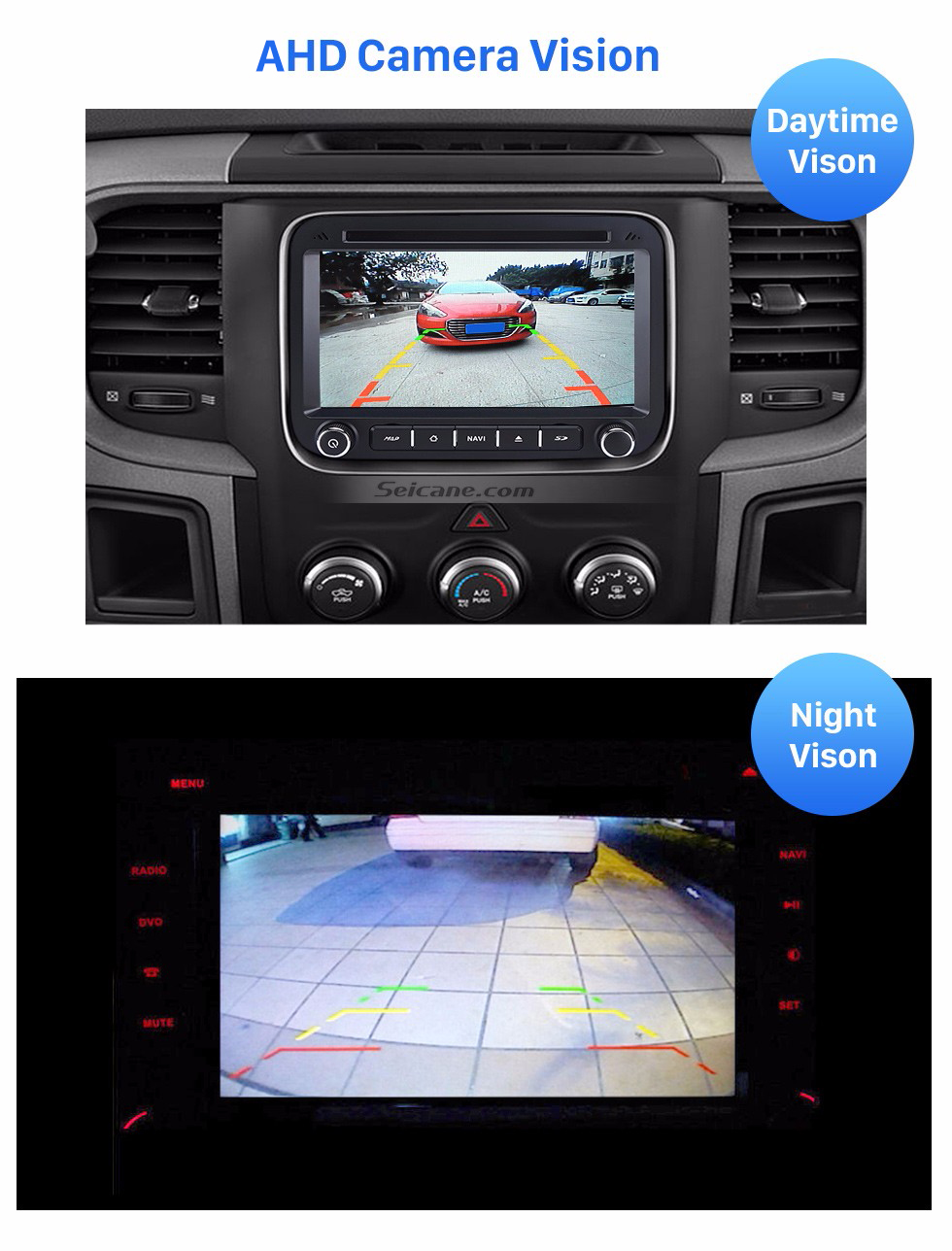

Night Vision Function Yes

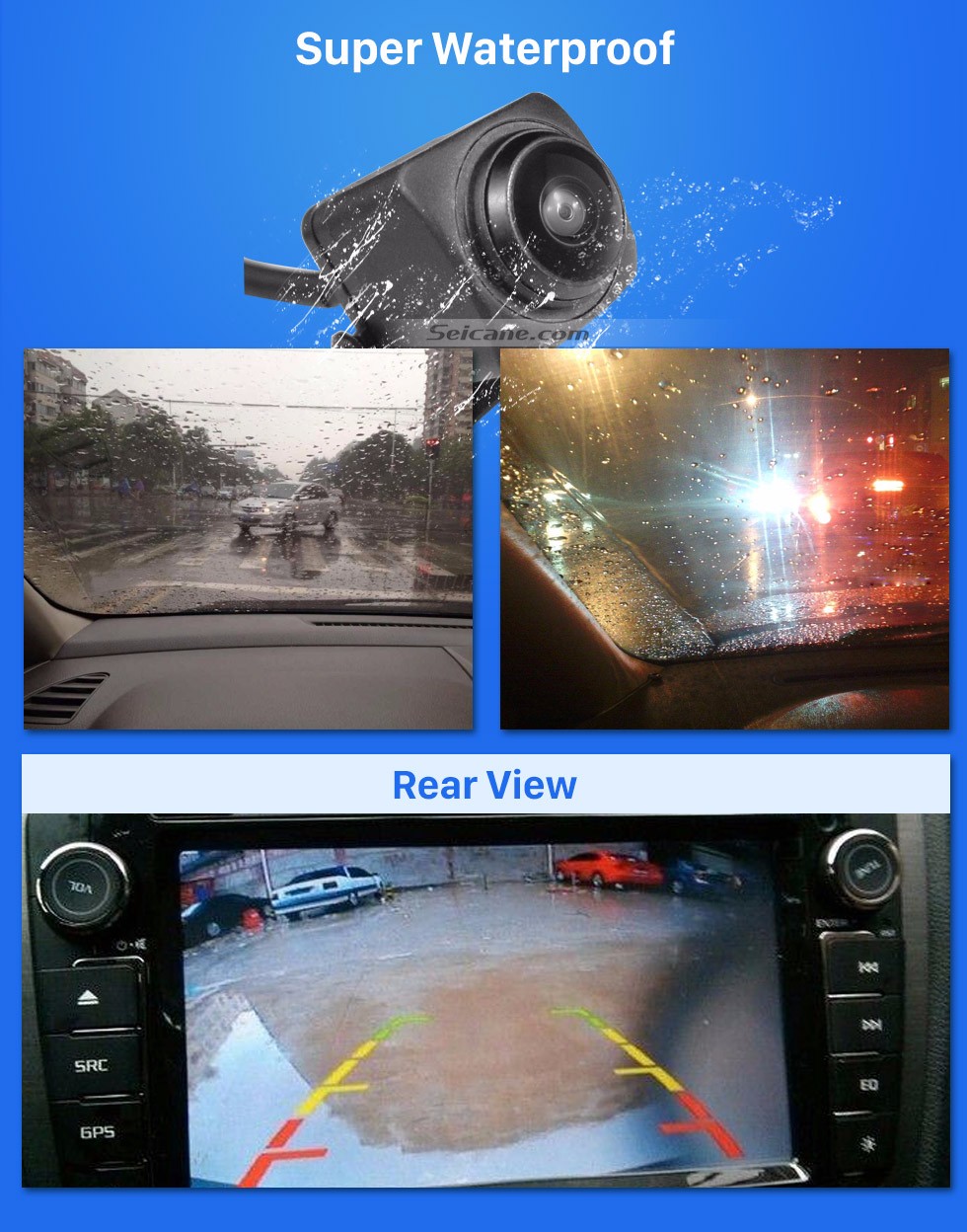

Waterproof IP66
Wide Angle 192°
With Grids Yes
Video System NTSC/PAL
Total Pixels 720×480
Resolution 420
Minimum Illumination 1.5 LUX
Video Output 1.0vp-p 75Ω
Voltage DC 12V(DC/DC)
Sensitive area 4.008mm x3.024mm
2: 1 interlace 2: 1 interlace
S/N Ratio ≥46dB
Internal Synchronization Internal Synchronization
Horizontal sync frequency 15.734KHz
Vertical synchronizing frequency 60Hz
Gamma coefficient 0.45
AGC Auto
White Balance Auto
Electronic shutter 1/60(NTSC)-1/10000second
BLC Auto
Ambient temperature -40°C---85°C
Operating Temperature -40°C to 85°C
camera lens F=2.1MM
staff gauge Yes
Power ≤1W
What's in the box Video Cable Power Cable User's Manual Rear View Camera
