    Introduction:

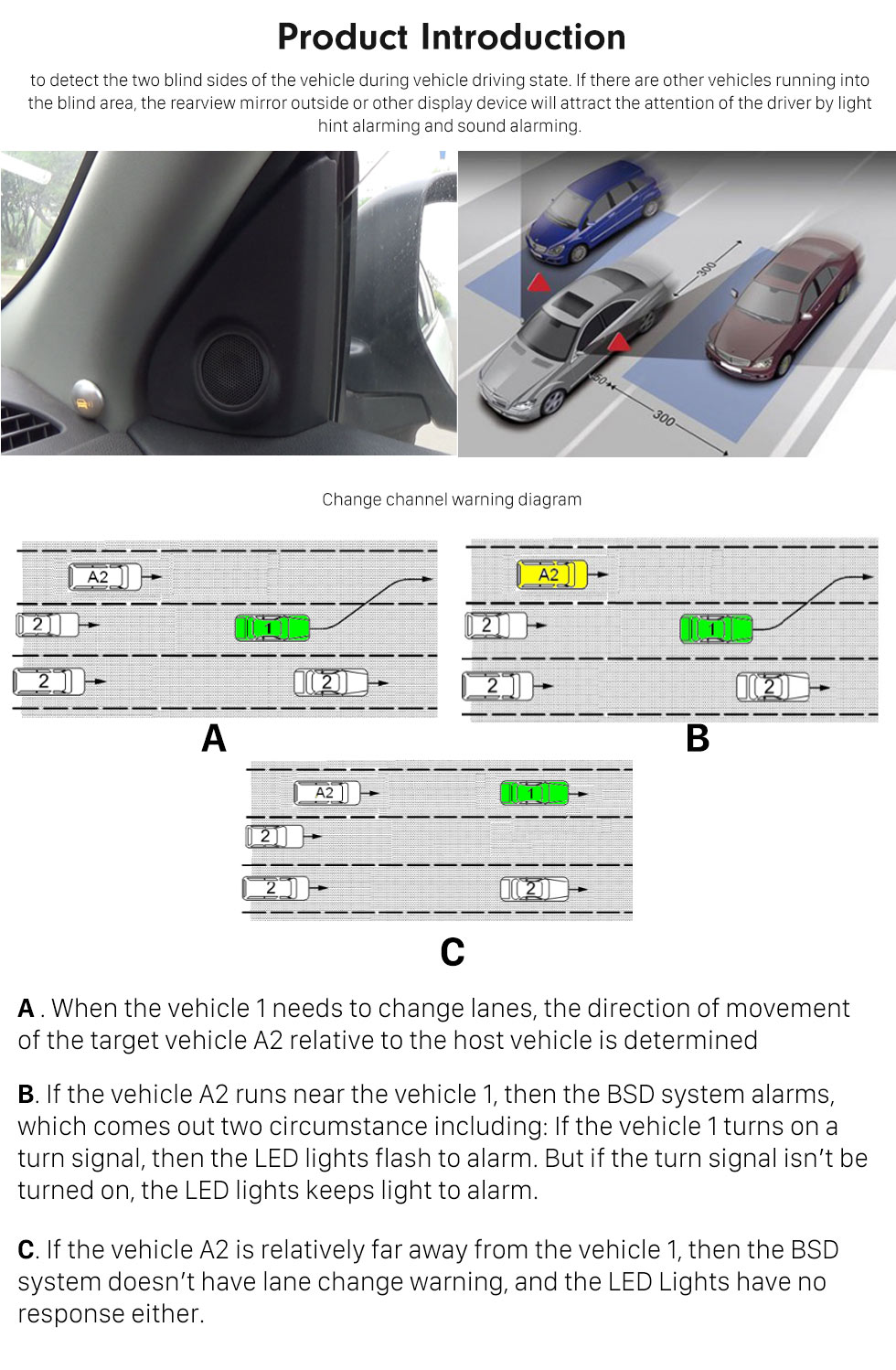

  • Blind spot detection system(BSD), that is, through the microwave radar system, to detect the two blind sides of the vehicle during vehicle driving state. If there are other vehicles running into the blind area, the rearview mirror outside or other display device will attract the attention of the driver by light hint alarming and sound alarming. Therefore, the driver is able to know the best time for merging and so as to significantly reduce traffic accidents caused by merging. In general, the main functions of BSD includes the judgment of moving directions of vehicles in blind area as well as lane change warning.

  • Note:
  • 1.BSD system start working after the vehicle starts
  • 2. The system can be forcibly closed and started by an external switch
  • 3. BSD system receives the current vehicle speed, direction lights and other information through the CAN BUS.
  • Specifics:
  • System Configuration:2 pieces of radar sensors
  • Standard: ISO17387:2008
  • Detection Range Accuracy: ±0.25m(Typical)
  • Maximum Detection Range of trucks:30cm-20m
  • Maximum Detection Range of automobiles:30cm-20m
  • Maximum Detection Range of motorcycles:30cm-15m
  • Alarm Range:30cm-15m
  • Alarm Accuracy of automobiles: 98%
  • Alarm Accuracy of motorcycles: 95%

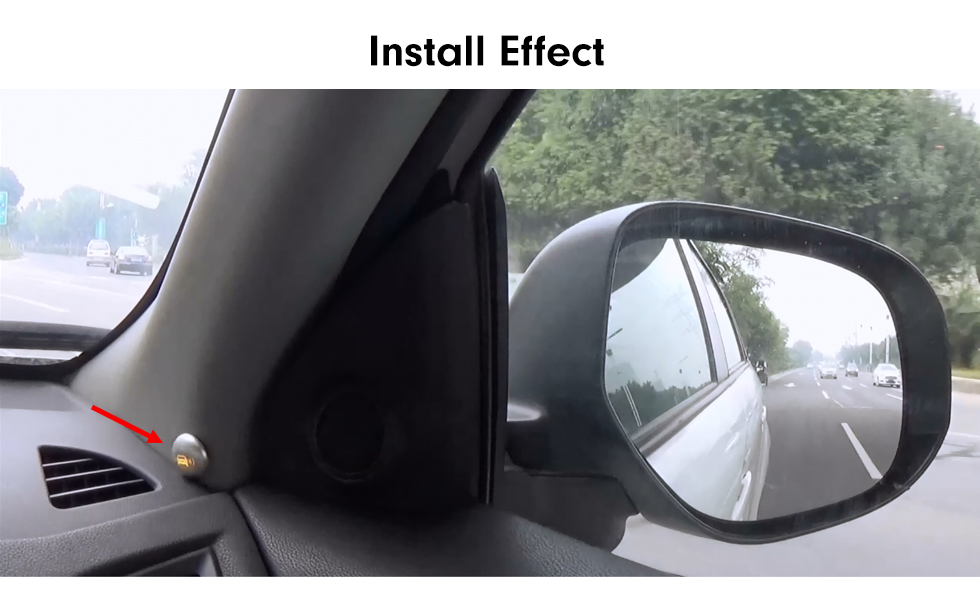

  • HMI Level 1:LED Light Flash
  • HMI Level 2:LED Light Flash & Buzzer Alarm
  • Waterproof Grade:IP6K7K
  • Electricity Consumption: ≤100mA@12VDC
  • Operating Voltage: 9.0-16VDC
  • Operating Temperature: -40℃- +85℃
  • Storage Temperature: -40℃- +95℃

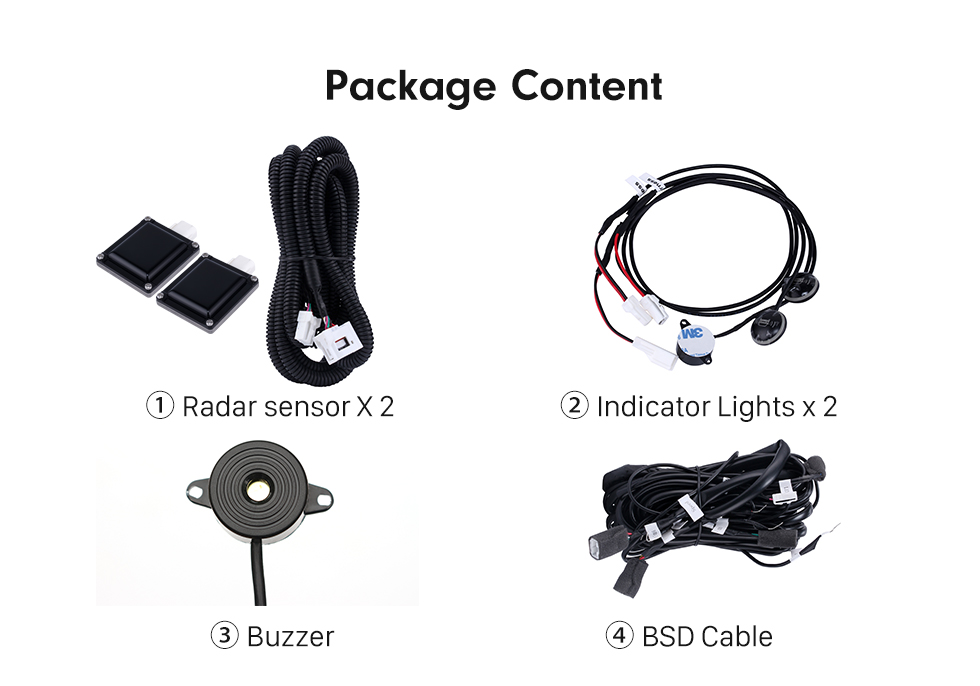

  • Package includes:
  • 2*Radar Sensors
  • 2*Indicator Lights
  • 1*Buzzer
  • 1*BSD Cable

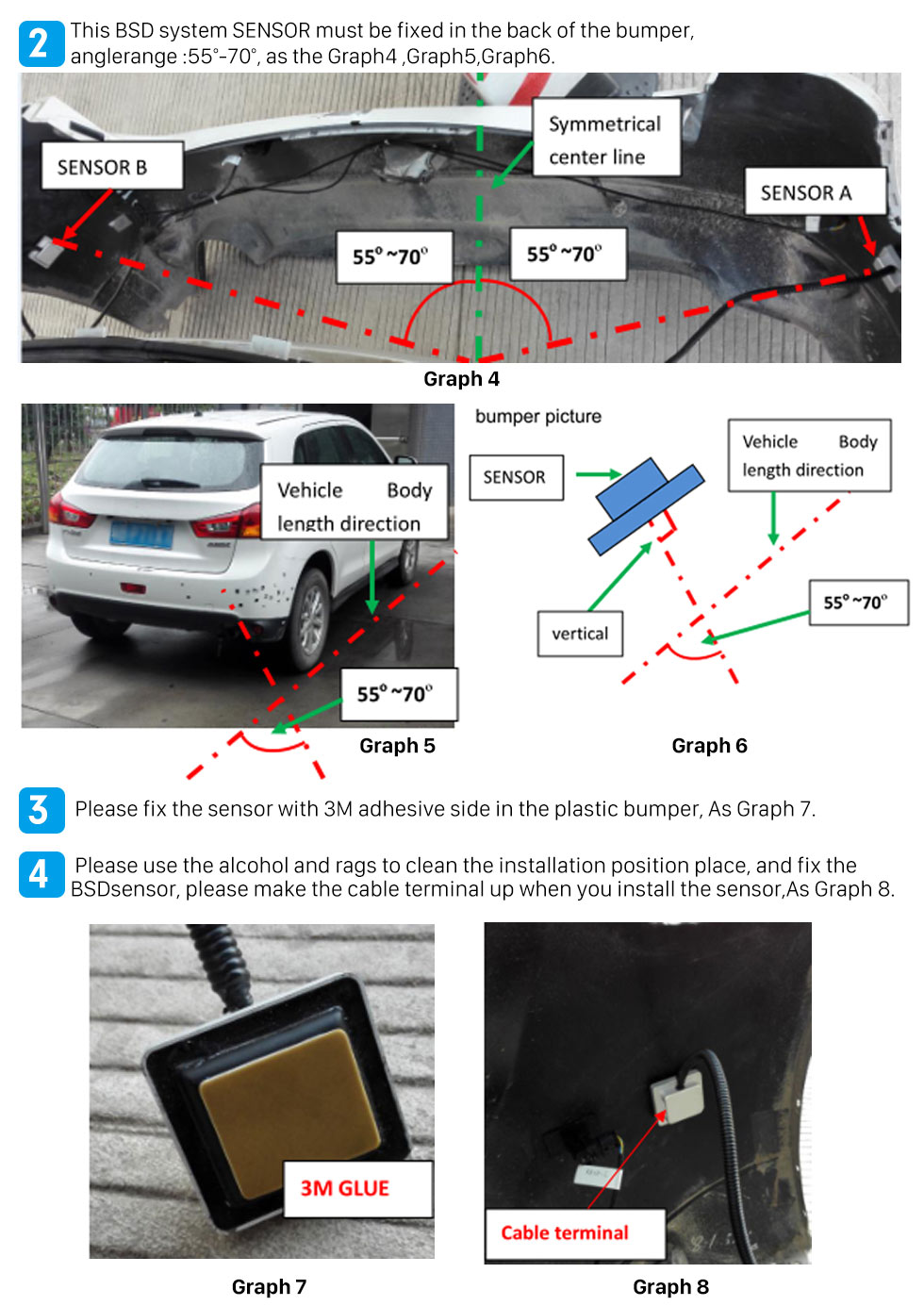

  • Radar Sensor Layout Requirements:
  • Do not use a metal case
  • Do not use paints or varnishes containing metal or carbon particles
  • Distance between external radome and antenna of microwave sensor should be≥6.2mm
  • The best external radome material is Polycarbonate or ABS
  • The optimum external radome thickness is 3-4mm
  • The relative movement (vibration) between the internal microwave antenna and the radome should be avoided to prevent interfering signals from affecting the final measurement
