Car DVD player for Mercedes-Benz CLK-W209 with GPS Radio TV Bluetooth Touch Screen

SKU: 107435 Model:S018802W

Special Price:

505.00

Regular Price: US$ 980.00

Save
US$475.00
  • 48%Off |
  • remaining

All car dvd players you see here are easy to install.

BUYING GUIDE VIDEO INSTALLATION
USER MANUAL FAQS RETURN POLICY

Quick Overview

Car DVD player GPS Navigation System for Mercedes-Benz CLK-W209 CLK200 CLK230 CLK320 CLK430 CLK55(1998 1999 2000 2001 2002 2003 2004)
GPS yes Analogue TV yes Radio yes Ipod yes Digital TV opt. Wi-Fi no
DVD yes USB/SD yes Bluetooth yes Rearview yes Camera opt. SWC yes

After Viewing This Item People ultimately bought

  • Universal multifunctional wireless steering wheel controller for Car DVD player GPS navigation system
    US$20.00
  • New Digial Panel 800*480 7 inch Car Headrest  Monitor  49

    Regular Price: US$312.00

    Special Price: US$159.00

  • Seicane Universal Standard Car Wifi Connection A/V Mirror Box Converter for IOS Android System Smart Phone Car Audio AUX CVBS
    US$55.61
  • HD SONY CCD 600 TV Lines Wired Waterproof Car Parking Backup Reversing Camera for 2008-2012 Mercedes-Benz CLS Night Vision free shipping
    US$70.00
  • car dvd dismantling device
    US$18.00
  • Brand new 1pcs Universal Car Headrest Player Auto Bracket DVD with Full HD 9 inch Touch Screen Remote control FM IR USB SD Games 53

    Regular Price: US$209.00

    Special Price: US$99.00

  • Brand new 10.1" HD 1024 * 600 high definition headrest MP5 Player Free Tilt Multilingual IR Transmitter FM Transmitter Game Function SD USB (1 pair) 46

    Regular Price: US$399.00

    Special Price: US$215.00

  • Seicane S126061 2007-2010 Chrysler Sebring Aspen 300C Cirrus Android 5.1.1 HD Touch Screen DVD Player Radio Bluetooth GPS Navigation 3G WiFi Video Steering Wheel Control Backup Camera AUX USB SD 45

    Regular Price: US$920.00

    Special Price: US$504.00

  • Smart Car Blind Spot Detection System Easy Change lane No Blind Areas Car Driving Security Safety Free Shopping
    US$365.00
  • Hot selling 2008-2012 Mercedes-Benz CLS Car Rear View Camera with four-color ruler and LR logo Night Vision free shipping
    US$39.80
  • Headrest DVD Player 9 inch 800*480 with FM Games and Zipper Cover(1 Pair)

    Regular Price: US$256.00

    Special Price: US$198.00

  • Universal 360°Surround View Car Parking Assistant System with 4 180°Cameras 2D Display Backup Reverse Assistance Car Kit Parking System
    US$198.00
  • Ultra-thin HD 1024 * 600 high definition 10.1" touch screen headrest MP5 Player Free Tilt FM Transmitter IR Transmitter 32 Bit Games USB SD Audio/Video Input & Output (1 pair) 53

    Regular Price: US$499.00

    Special Price: US$235.00

  • HD Wired Car Parking Backup Reversing Camera for 2011-2013 NEW Mercedes-Benz C Waterproof four-color ruler and LR logo Night Vision free shipping
    US$39.80
  • Games FM 7 inch Headrest Car DVD Player and Protective Screen Cover(1 Pair) 53

    Regular Price: US$420.00

    Special Price: US$199.00

  • Hot Selling 15.6 inch Universal Overhead Slot-in Roof Mount DVD Player Remote Control Multi OSD Languages Support FM IR Transmitter USB SD Input Games 8GB External Memory
    US$199.00
  • 7-inch TFT 800*480  LCD Digital Brand new Panel Car Headrest Touch Screen DVD Player(1 pair)

    Regular Price: US$290.00

    Special Price: US$179.00

  • Sun-visor Car DVD Player 7 inch Screen with FM USB SD Games
    US$229.99
  • Brand New Universal DAB DAB+ Tuner Car Kit Car Audio Broadcasting Receiver Support IR Control Antenna TV Signal RF Max 240MHZ
    US$75.00
  • 2×10 inch Intelligent Android 5.1.1 Quad-code Free Tilt headrest MP5 DVD Player with digital HD 1024 * 600 TFT LED Touch Screen Bluetooth WIFI FM Transmitter IR Transmitter USB SD 57

    Regular Price: US$699.00

    Special Price: US$299.00

  • HD SONY CCD 600 TV Lines Wired Car Parking Backup Camera for 2011-2013 NEW Mercedes-Benz C Waterproof Night Vision free shipping
    US$39.80
  • 9 inch Touch Screen Android Car Headrest Multimedia Tablet PC(Game FM,Built-in Wifi)
    US$159.00
  • Fashionable Designed Universal Slot-in Roof Mount DVD Player with HD 1080P Video 11.9 inch Screen Remote Control Multi OSD Languages Support HDMI IR/FM Transmitter Video Input Output 50

    Regular Price: US$299.00

    Special Price: US$150.00

Details


With this 1998, 1999, 2000, 2001, 2002, 2003, 2004 Mercedes Benz CLK W209 CLK200 CLK230 CLK320 CLK430 CLK55 in dash navigation DVD stereo, you will discover the latest voice direction GPS software and entertainment system preinstalled.
Open up your whole new driving life with it!

Attention:
1. For cars with only glove box and no big screen or navigation, the installation is easy and totally plug-and-play.
2. For cars with big screen or CD based Navigation, You need to check if the car has optic fiber amplifier. If yes, you will need to run a 6 meter long cable to bypass your original car’s optic fiber amplifier during the installation. Your original car’s optic fiber amplifier will not work after installation.

Even though your car’s optic fiber amplifier does not work, the sound quality of the unit is still very good. It has built-in amplifier and this amplifier can drive four speakers of your original car (FL, FR, RL, RR).If you need all the speakers work, you can add an amplifier. This way of installation is relatively complicated and not totally plug-and-play.





Mercedes-Benz CLK-W209 car dvd gps

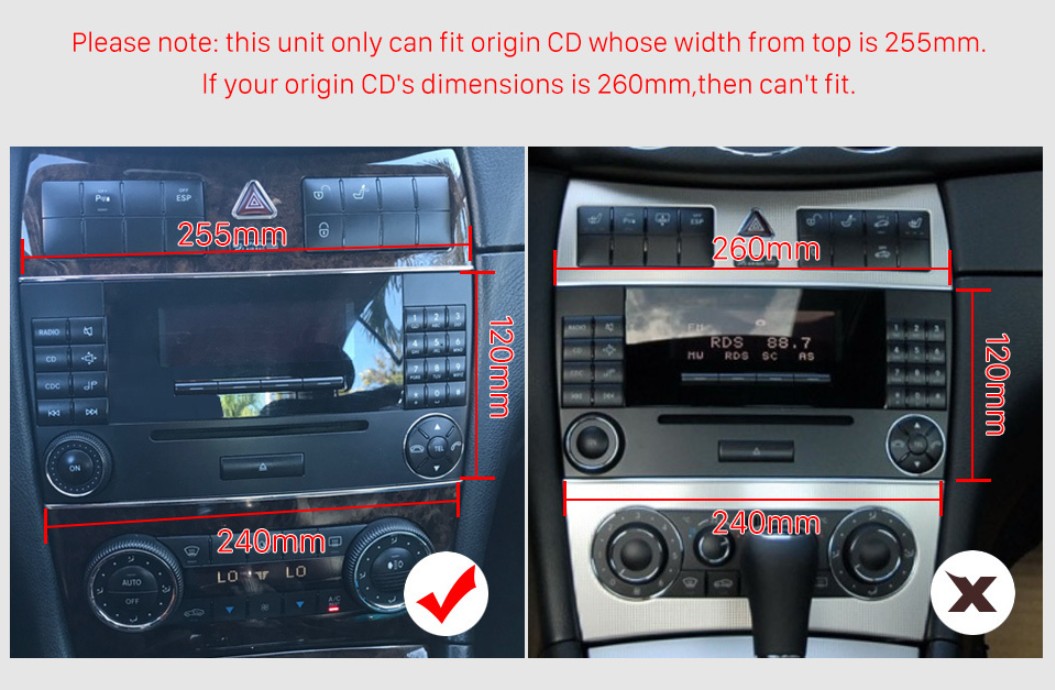

Mercedes-Benz CLK-W209 original car cd dvd

Mercedes-Benz CLK-W209 car dvd after installation

Mercedes-Benz CLK-W209 car dvd player with gps usb sd

Mercedes-Benz CLK-W209 car dvd player with automatic night mode

Mercedes-Benz CLK-W209 car dvd player with touch screen

Mercedes-Benz CLK-W209 car dvd player

car dvd player with radio bluetooth music

car dvd player with bluetooth

car dvd player with rearview camera

car dvd player with steering wheel control

Mercedes-Benz CLK-W209 car dvd player with usb sd

car dvd player with tv steering wheel rearview camera

Mercedes-Benz CLK-W209 car dvd player with IPOD audio

car dvd player with dual zone function

Mercedes-Benz CLK-W209 car dvd player with AUX

Car DVD player for Mercedes-Benz CLK-W209 size

Car DVD player for Mercedes-Benz CLK-W209 accessories

Car DVD player for Mercedes-Benz CLK-W209 size and cable connections

Car DVD player for Mercedes-Benz CLK-W209


    Key Features:
  • 6.2 inch 16:9 800*480 digital high definition TFT LCD touch screen
  • Use the newest 800MHz ARM11 processor and base on WinCE6.0 operation system
  • Built-in GPS navigation system. Support 3D GPS map
  • Disc Play. Compatible with DVD/VCD/HVCD/MP4/MP3/CD/AVI/DIVX etc
  • Sanyo Heat-Resistant DVD loader(SF-HD860MC)
  • Mini USB and SD card. Support WMA/MPEG1/MPEG2/MPEG3/MPEG4/MOV/AVI/DIVX/MP4 etc
  • Support HD Video with 1080P(Built-in IC: TW8825). with MP5.
  • 256MB RAM. Support external 500GB Hard Disk Drive.
  • Support audio format: MP3/MP2/ACC/OGG/RA/WAV/FLAC/APE etc
  • Support media format: H.264/MPEG-4/RMVB/AVI/WMV/3GP/MP4/MOV/MPG/VOB etc
  • AUX In Support
  • IPOD Support
  • Built in analog TV. Built in Digital TV(DVB-T/ATSC-MH/I-SDB-T) as options
  • AV input and output. support rear camera input.automatically switch to rear camera when revese the car
  • Radio function.30 preset stations.5BAND*6.Support RDS
  • Build in Bluetooth for hand free (Coming Tel No. display function & Call out directly by touch screen)
  • Build in Bluetooth music.play music in your phone via bluetooth. Support A2DP
  • CDC Support
  • Built in Amplifier 4 ch output 4*45W
  • Original Canbus system for steering wheel control
  • Uniquely designed circuitry including standby function to increase battery durability
  • Adjustable parameters can be memorized automatically. and resume back to the default
  • With excellent mechanical anti-vibration and electronic shock protection
  • Real time clock function
  • Small light available on the button of the panel
  • Night Mode support.Close display and enjoy music in the background.protect you for driving at night
  • Dual zone function support.Enjoy music while using GPS
  • GPS map languages:Arabic Bulgarian Catalan Chinese Crotian Czech Danish Dutch English Estonian Finnish French German Greek Hebrew Hungarian Italian Latvian Lithianian Norwegian Polish Portuguese Romanian Russian Serbian Slovak Slovenian Spainish Swedish Turkish Ukrainian etc
  • OSD menu have 12 languages for choice:English German French Spanish Turkey Norwegian Italian Greek Russian Indonesian Lithianian Latvian.
Critical parameter
Working voltage DC 10.5V-16V
Working current MAX 10A
Standby current <=50mA
POWER OFF current <1mA
Working Temperature -20°-60°
Storage Temperature -30°-70°
Hardware parameters
Processor SiRF ARM11
Main frequency 800MHZ
DVD decode chip MTK1389L
DSP 300MHZ for GPS decode
DDR 256MB DDR
FLASH SLC MLC
USB USB2.0 OTG
FM module TDA7703
Bluetooth chip CSR car-mounted BC3
System parameters
Operation system WINCE 6.0 CORE
Support map Tomtom IGO Route 66 Papago etc
Video system automatic PAL/NTSC
Display
Display size 16:9
Screen Size 6.2 inch
Touch Screen yes
Screen Resolution 800*480 Pixels
GPS Navigation System
Chipset SIRF STAR 3
Frequency 1.575GHz
Channel number 20channels
Hot start time average 2s
Warm start time average 31s
Cold start time average 32s
Display output CVBS+S-VIDEO output
Audio output Stereo CD Quality
Support audio type MP3/PCM/WMA
Support video type ASF/AVI/WMV/DIVX
Tracking sense degree -159dbm
Position accuracy 10m 2D RMS WAAS enable
Velocity 0.1m/s
Data renewal rate 1Hz
Re-catching time average 0.1s
The biggest fixed height 18000m
The biggest velocity 515m/s
Power specification DV 12V current<500mA
Consumption 4.5W(12V/360mA) normal 3W(12V/250mA)
Amplifier parameters
Testing voltage 13.8V
Maximum power output 4×45W
Speaker impedance 4Ω (4-8Ω acceptable)
DVD parameters
Video output range 1+10.2Vp-p(75Ω)
Disc spec diameter 12cm disc
Compatible disc DVD VCD HVCD MP4 MP3 CD AVI DIVX
Audio parameters
Channel Separation 60dB
Distortion 0.5%
Frequency response 20Hz-20KHz (±3dB)
S/N Ration 70dB
Bass Treble Effect Low 100Hz±10dB High 10KHz±10dB
Radio parameters
FM/AM frequency FM: 87.5MHz-108MHZ(Worldwide) AM: 522KHz-1620KHz(Worldwide)
Radio area Europe Japan USA Russia China Latin America
Storage quantity FM radio: 18channels AM radio: 12channels
Search method automatic/manual
Optional function
Digital TV (DVB-T/ATSC-MH/I-SDB-T) yes
TMC yes
Camera yes
Accessories
English User’s Manual yes
Remote Controller (Battery inside) no
RCA Cable yes
iPod Cable yes
USB Cable yes
GPS Antenna yes
Power Cable yes
touch pen yes
Canbus Box yes
Packing and Shipping
Carton size 38*32*26cm
Unit packing 2.93kg
Export carton 4.05kg
Warranty 1 year

Write Your Own Review

Average Rating:
based on 1 review
100% (1)
0% (0)
0% (0)
0% (0)
0% (0)
Price
Value
Quality

by Travis

21/11/2014 06:26 PM (GMT)
Upgrade for my CLK W209
  • Before the stereo upgrade, I was looking for an in dash Sat Nav System with GPS touch screen cd dvd rear camara ect because my factory one quite out-of-date without navigation.
    Looking beautiful, this unit is of the same shape with the original one. I've got this fitted to my car without any gap.
    Along with the desirable 3D gps, another important feature attracted me is that it also comes with DVD player and supports 1080P video.
    It is very cost-effective considering all these benefits. Worth recommending!
click for full-size image
Would you recommend this product to a friend? Definitely yes
1 of 1 found this review helpful.
Was this review helpful?

1 Item(s)

per page


Q & A See all 19 questions and answers »

Tab 1 Body
  • Q:
  • Is the unit compatible with the instrument cluster display and the buttons on the steering wheel?

    Will information about the radio be displayed on the instrument cluster like with the factory radio? That is information like source, time stamp, volume, etc?

    Do all the buttons on the steering wheel work with the unit? The scroll, menu, volume and phone buttons.

    Thanks

    ByLex_Seven

  • Sep 19, 2015
  • A:
  • Hello
    Yes this unit will display source tiem stamep volume etc
    this unit support all the steering whee controls
    Could you please send us the photo of your car's dashboard?
    And could you please tell us the model and year of your car?
    Then we can help check it.
    Thanks

    By Seicane

  • Dec 7, 2016
  • Q:
  • MERCEDES BENZ CLK 320 ANO 2000

    Hello! Will this model fit my CLK 320 ELEGANCE from 2000 ?

    ByCarlos M.

  • Jun 13, 2015
  • A:
  • Hello,Could you please send us the photo of your car's dashboard?So we can help you check if this unit will fit your car.Thank you!

    By Seicane

  • Dec 7, 2016
  • Q:
  • MERCEDES BENZ CLK 320 ANO 2000

    Reproductor DVD del coche para Mercedes-Benz CLK-W209 con GPS Radio TV Bluetooth Pantalla táctil PUEDO INSTALAR o COMPATIBLE MERCEDES BENZ CLK 320 DEL ANO 2000 ?
    Se si, cuantos dias lleva a llegar ?

    Carlos

    ByCarlos M.

  • Jun 13, 2015
  • A:
  • Hello,Could you please send us the photo of your car's dashboard? So we can help you check if this unit will fit your car.We need 3-5 working days to process your order,and then it takes about 4-5 days to reach your door after shipping.Thank you!

    By Seicane

  • Dec 5, 2016
  • Q:
  • Hello! Will this model fit my CLK 320 from 2002, this is W209 model.

    The dashboard ptoho is attached please. Thanks!

    ByAndrey

  • May 5, 2015
  • A:
  • Hello, we have confirmed that this unit can fit your car. Please place order directly on our website. Thank you.

    By Seicane

  • Dec 7, 2016
  • Q:
  • Do you ship this product to the UK ? If yes any additional costs and does it fit my CLK w209 270CDI?

    Please let me know if you guys ship this product to the UK and if yes how much for shipping and does it support my clk 270 cdi avant 2004 ????

    ByLaiq

  • Apr 23, 2015
  • A:
  • Hello, yes, we can ship to UK. The shipping cost is US$80 via DHL.

    It can fit your car according to the model and year. Could you please send us a picture of your car's dashboard? then we can check if it fits your car. Thank you.

    By Seicane

  • Dec 8, 2016
Tab 2 Body
Tab 3 Body
  • Q:
  • Is the unit compatible with the instrument cluster display and the buttons on the steering wheel?

    Will information about the radio be displayed on the instrument cluster like with the factory radio? That is information like source, time stamp, volume, etc?

    Do all the buttons on the steering wheel work with the unit? The scroll, menu, volume and phone buttons.

    Thanks

    ByLex_Seven

  • Sep 19, 2015
  • A:
  • Hello
    Yes this unit will display source tiem stamep volume etc
    this unit support all the steering whee controls
    Could you please send us the photo of your car's dashboard?
    And could you please tell us the model and year of your car?
    Then we can help check it.
    Thanks

    By Seicane

  • Dec 7, 2016
  • Q:
  • MERCEDES BENZ CLK 320 ANO 2000

    Hello! Will this model fit my CLK 320 ELEGANCE from 2000 ?

    ByCarlos M.

  • Jun 13, 2015
  • A:
  • Hello,Could you please send us the photo of your car's dashboard?So we can help you check if this unit will fit your car.Thank you!

    By Seicane

  • Dec 7, 2016
  • Q:
  • MERCEDES BENZ CLK 320 ANO 2000

    Reproductor DVD del coche para Mercedes-Benz CLK-W209 con GPS Radio TV Bluetooth Pantalla táctil PUEDO INSTALAR o COMPATIBLE MERCEDES BENZ CLK 320 DEL ANO 2000 ?
    Se si, cuantos dias lleva a llegar ?

    Carlos

    ByCarlos M.

  • Jun 13, 2015
  • A:
  • Hello,Could you please send us the photo of your car's dashboard? So we can help you check if this unit will fit your car.We need 3-5 working days to process your order,and then it takes about 4-5 days to reach your door after shipping.Thank you!

    By Seicane

  • Dec 5, 2016
  • Q:
  • Hello! Will this model fit my CLK 320 from 2002, this is W209 model.

    The dashboard ptoho is attached please. Thanks!

    ByAndrey

  • May 5, 2015
  • A:
  • Hello, we have confirmed that this unit can fit your car. Please place order directly on our website. Thank you.

    By Seicane

  • Dec 7, 2016
  • Q:
  • I've order this for mercedes clk 240 year 2002 it this function well?

    How long will it take the shipment to Italy?

    ByClaudio

  • Aug 14, 2014
  • A:
  • Hello,we have confirmed that this unit fits your car and will function well.

    We need 3 days to process your order,and then it takes about 3-4 days to reach your door after shipping.Thank you for shopping with us.

    By Seicane

  • Dec 7, 2016
Tab 4 Body
  • Q:
  • Do you ship this product to the UK ? If yes any additional costs and does it fit my CLK w209 270CDI?

    Please let me know if you guys ship this product to the UK and if yes how much for shipping and does it support my clk 270 cdi avant 2004 ????

    ByLaiq

  • Apr 23, 2015
  • A:
  • Hello, yes, we can ship to UK. The shipping cost is US$80 via DHL.

    It can fit your car according to the model and year. Could you please send us a picture of your car's dashboard? then we can check if it fits your car. Thank you.

    By Seicane

  • Dec 8, 2016
Tab 5 Body

Product Tags

Other people marked this product with these tags:

Use spaces to separate tags. Use single quotes (') for phrases.
